Print and Paint with electrically graphite conductive paint.

Is an acrylic paint that uses a graphite filler to create conductive, static-free surfaces. It cures to a smooth, durable finish and is resistant to abrasion, oxidation, and extreme thermal cycling, making it a suitable choice for outdoor use. It is a general-use conductor to provide low-cost EMI/RFI shielding. It can be used where it is necessary to impart conductivity on common plastic surfaces and drywall, making it suitable for shielding entire rooms against low frequencies.

Features & Benefits

• High conductivity, low surface resistivity.

• Repairable and removable.

• Stronger adhesion than water-based coatings.

• Rub off resistant.

• Tough and durable coating, salt spray tested with excellent weatherability.

• Excellent adhesion to most plastics.

• Broad frequency range protection.

• Extremely versatile and perfect for use in a wide range of applications.

• Repairing PCBs Painting circuits/sensors Low temperature soldering.

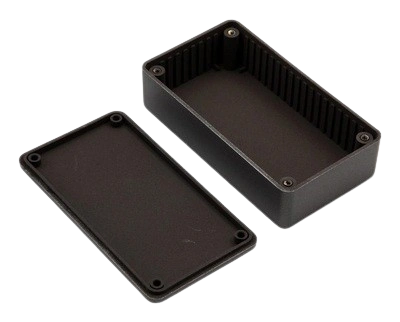

• Coatings cure quickly and are intended for use on commonly used plastics for PCB enclosures like ABS, Nylon and Polycarbonate.

• Adheres well to plastics and FR-4 PCB substrate, so ideal for PCB repair.

• It is also ideal for a wide range of prototyping materials, electrical components, microcontrollers and pcb boards.

• Graphite Conductive Paint is a great platform for Heating Elements, Paper Circuits, Small Hobbyist projects or highly technical projects.

• The product works best on a smooth, flat, hard surface, but the cured traces are highly flexible.

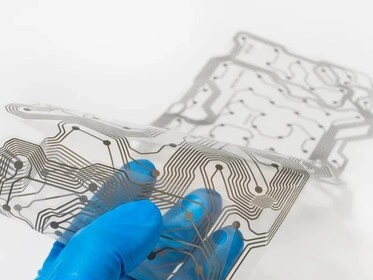

• Can be used on a wide variety of materials, from paper and textiles to plastics and traditional electronic components.

• It can be applied with a brush, roller or using screen printing techniques and becomes conductive once the conductive paint is completely dry, cannot be removed, on some applied surfaces it can only be removed by such as glass, metal, aluminum.

• A non-toxic, water-soluble, solvent-free formulation, this electric ink is the perfect typing tool for developers of all ages and levels of expertise.

• Circuit repair for pen dispenses a precise spot of conductive paint.

• Does not contain toluene, xylene, or metil etil cetone (MEK).

• Cost: Affordable.

NoelEnergy Srl offers Conductive paint is a specially formulated paint with conductive pigments (such as silver, copper, or graphite) that allow it to conduct electricity across the surface it is applied to. For more information and a price quote, please contact us at office.noelenergy@gmail.com.

Fișă tehnică / Technisches Datenblatt / Technical Data Sheet

Relevant identified uses:

RO: Un strat de acoperire umplut cu grafit care face suprafețele conductive electric.

DE: Eine mit Graphit gefüllte Beschichtung, die Oberflächen elektrisch leitfähig macht.

EN: A graphite filled coating that makes surfaces electrically conductive.

IT: Rivestimento riempito di grafite che rende le superfici elettricamente conduttive.

FR: Un revêtement chargé de graphite qui rend les surfaces électriquement conductrices.

Specified Properties

• Carbon / Kohlenstoffgehalt / Carbon Content (LOI) / Carbon / Charbon

> 99.5 %C

• Dimensiunile particulelor D50 / Partikelgrößen D50 / Particle Size Distribution D50 / Dimensioni delle particelle D50 / Taille des particules D50

3.5-5.5 μm

• Densitate Vrac / Schüttdichte / Bulk Density / Densità apparente / Masse Volumique Apparente

150 - 200 g/l

• Densitate la 25°C / Dichte @ 25°C / Density @ 25°C / Densità @ 25°C / Densité @ 25°C

0.9 g/mL

• Timp de Uscare / Trocknungszeit / Drying Time / Tempo di Asciugatura / Temps de Séchage

3 - 5 min

• Rezistență / Widerstand / Resistivity / Resistività / Résistivité

0.63 Ω·cm

• Temperatură / Temperatur / Temperature / Temperatura / Température

-40 - 120 °C

• Clasa magnetică / Magnetklasse / Magnetic class / Classe magnetica / Classe Magnétique

diamagnetic

• Format / Format / Format / Formato / Format

liquid

• Culoare / Farbe / Color / Colore / Couleur

black/dark gray

NoelEnergy Srl offers Conductive paint is a specially formulated paint with conductive pigments (such as silver, copper, or graphite) that allow it to conduct electricity across the surface it is applied to. For more information and a price quote, please contact us at office.noelenergy@gmail.com.

Legislation and Compliance with European Regulations

NoelEnergy srl has taken all reasonable steps to confirm this statement. Information relates to Graphite Paint only to products sold on or after the date of this certificate.

Legislation and Compliance • RoHS Certificate of Compliance. EU Directives 2011/65/EU and 2015/863 restrict the use in the manufacture of the 10 substances below, specified types of electrical equipment. Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers. The product does not contain any of the restricted substances in concentrations and applications banned by the Directive, and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering. The substances and maximum allowed concentrations in the homogenous material are, by weight: Lead - 0.1%, Mercury - 0.1%, PBB (Polybrominated Biphenyls) - 0.1%, PBDE (Polybrominated Diphenyl Ethers) - 0.1%, Hexavalent Chromium - 0.1%, Cadmium - 0.01%, DEHP (Bis (2-Ethylhexl) phthalate) - 0.1%, BBP (Benzyl butyl phthalate) - 0.1%, DBP (Dibutyl phthalate) - 0.1%, DIBP (Diisobutyl phthalate) - 0.1% • NoelEnergy srl has taken all reasonable steps to confirm this statement. Information relates to Graphite Paint only to products sold on or after the date of this certificate. Document Download GCP Technical Datasheet.pdf Download MSDS Graphite Conductive Paint.pdf Download
